Overview
VEIGLO™ S100 Series rugged connector 2.5-inch SATA SSD products are special designed for industrial environments applications such as vehicles, shipboards, and high-speed rails etc. Which meet the requirements of continuous vibrating working environment and ensure highly reliable and stable data storage solutions.
Specification:
Physical | Form Factor: | 2.5" SATA 7+15pin Connector |
Interface: | SATA Ⅲ(SATA Ⅱ& SATA Ⅰ compatible) | |
Dimension: | 100.20mm × 69.85mm × 9.00mm | |
Weight: | ≈100g | |
Capacity | SLC: | 64GB,128GB,256GB,512GB |
MLC: | 128GB,256GB,512GB,1TB,2TB | |
Performance | Sequential Read | 560MB/s |
Sequential Write | 450MB/s | |
Random Read(4K) IOPS | 70k | |
Random Write(4K) IOPS: | 75k | |
Electrical | Power Supply | 5V±5%(Max 1.5A) |
Power Consumption | Active: ≤4.5W | |
Idle: ≤1W | ||
Temperature | Operating Temperature | Optional W-Temperature:-55℃~85℃ |
W-Temperature:-40℃~85℃ | ||
C-Temperature: 0℃~70℃ | ||
Storage Temperature | -55℃~95℃ | |
Humidity | 5%~95%(No Condensing) | |
Vibration | 15g(10~2000Hz) | |
Shock | 1500g/0.5ms | |
Reliability | MTBF: | 2000000hrs |
Total Bytes Written | SLC:10000~100000 times | |
MLC:3000~5000 times | ||
Optional Functions | Secure Erase | ● |
Quick Erase | ● | |
AES-256bit Encryption | ● | |
Physical Destruction | ● | |
Remarks: |
1. The speed performance is related to the SSD capacity and test environments. 2. Power consumptions is related to the SSD capacity and test environments. 3. The marked capacity is the NAND Flash’s capacity, and the real available capacity will be different in different application environments, normally is around 80%~90% marked capacity. |

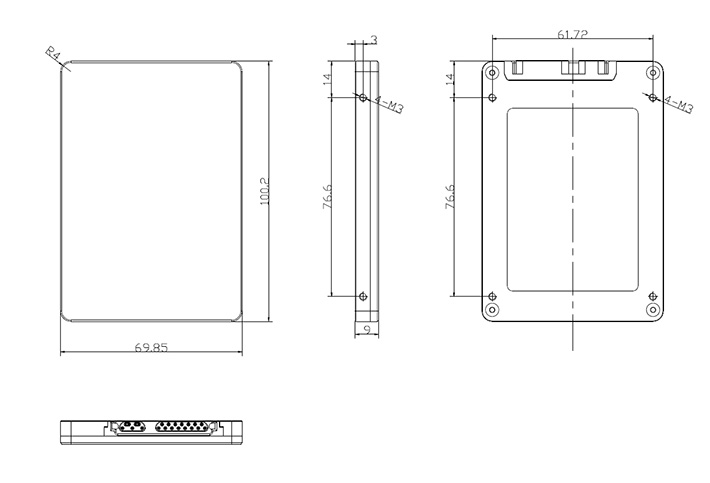

尺寸图:
订购信息:
Model No. | Flash Type | Capacity | Thickness | Operating Temperature |
VGRS100M0102XXXX-C | MLC | See below remark No.1 | 9mm | 0℃~70℃ |
VGRS100M0102XXXX-W | MLC | See below remark No.1 | 9mm | -40℃~85℃ |
VGRS100M0102XXXX-B | MLC | See below remark No.1 | 9mm | -55℃~85℃ |
VGRS100S0102XXXX-C | SLC | See below remark No.1 | 9mm | 0℃~70℃ |
VGRS100S0102XXXX-W | SLC | See below remark No.1 | 9mm | -40℃~85℃ |
VGRS100S0102XXXX-B | SLC | See below remark No.1 | 9mm | -55℃~85℃ |
Remarks: |
1. XXXX=Capacity(SLC:64GB=0064,128GB=0128,256GB=0256,512GB=0512;MLC:128GB=0128,256GB=0256;512GB=0512,1TB=1024,2TB=2048) 2. Destruction Functions Optional: Quick Erase with final code Q, and Physical Destruction with final code P; such as: VGRS100M01021024-WQ or VGRS100M01021024-WP. |
