VEIGLO is the specialty flash storage brand of V&G Information System Co., Ltd, mainly supplying the rugged SSDs, industrial SSD, VPX storage products,  SSDs include SLC NAND Flash and with extended temperature requirements for industrial, aviation, aerospace and other high-end equipment applications. Extremely high requirements of durability, reliability and security are also under our consideration.

S100 Series:
• Full compliant with 1.5/3.0/6.0 Gbps SATA Spec.
• Built-in ECC (Error Correction Code) function.
• Advanced Dynamic/Static Wear-leveling Algorithm.
• Dynamic Power Management.
• Support S.M.A.R.T.
• Support Trim and Native Command Queuing Command.
S501 Series:
• Full compliant with 1.5/3.0/6.0 Gbps SATA Spec.
• Built-in ECC (Error Correction Code) function.
• Advanced Dynamic/Static Wear-leveling Algorithm.
• Dynamic Power Management.
• Support S.M.A.R.T.
• Support Trim and Native Command Queuing Command.
  • Overview
  • Specification
  • 尺寸图
  • 订购信息
  • Applications

Overview

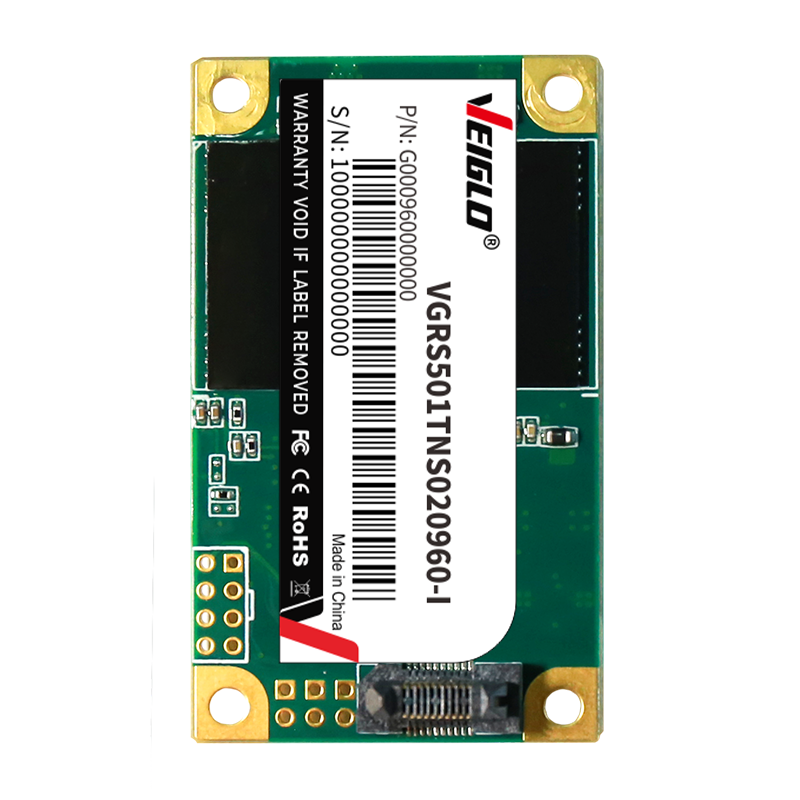

VEIGLO® S100 and S501 Series mSATA (MO300) SSD products with rugged interfaces are special designed for harsh environments applications with continuous vibration and should ensuring high reliability and with high stable data storage solutions.

Specification:

S100 Series S501 Series
Physical Form Factor: Rugged MO-300A
Interface: SATA Ⅲ(SATA Ⅱ& SATA Ⅰ COMPATIBLE)
Dimension: 50mm × 29.8mm × 8.6mm(7mm thickness rugged connector)
Weight: ≈10g
Capacity MLC: 128GB, 256GB, 512GB,1TB, 2TB -
TLC: - 120GB, 240GB, 480GB, 960GB
Performance Sequential Read 540MB/s 560MB/s
Sequential Write 420MB/s 480MB/s
Random Read(4K) IOPS 75k 70k
Random Write(4K) IOPS: 70k 35k
Electrical Power Supply 3.3V±5%(Max 2A)
Power Consumption Active: ≤4.5W Active: ≤2.3W
Idle: ≤1W Idle: ≤1W
Temperature Operating Temperature W-Temperature:-40℃~85℃ I-Temperature:-20℃~70℃
B-Temperature:-55℃~85℃ -
Storage Temperature -55℃~95℃
Humidity 5%~95%(No Condensing)
Reliability Vibration 3g(10~2000Hz)
Shock 1500g/0.5ms
MTBF: 2000000hrs
Total Bytes Written MLC:3000~5000 times
TLC:3000 times
Certificates CE、FCC、RoHS
Optional Functions Secure Erase
Quick Erase
AES-256bit Encryption
Physical Destruction
Remarks: 1. The speed performance is related to the SSD capacity and test environments.
2. Power consumptions is related to the SSD capacity and test environments.
3. The marked capacity is the NAND Flash’s capacity, and the real available capacity will be different in different application environments, normally is around 80%~90% marked capacity.

尺寸图:

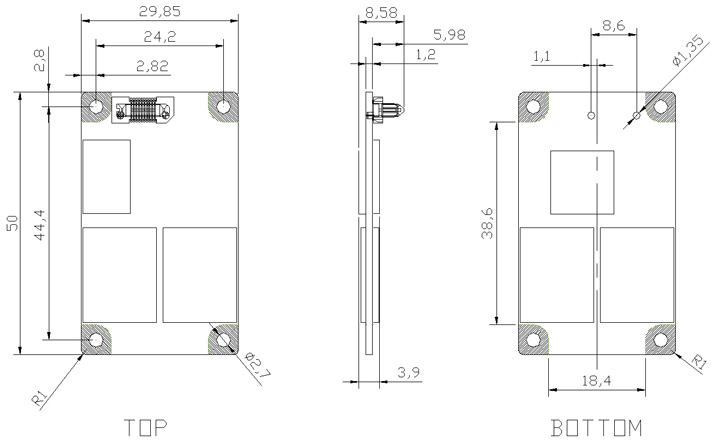

Note: 2TB rugged mSATA thickness (without connector) is 4.6mm 7mm thickness dimension

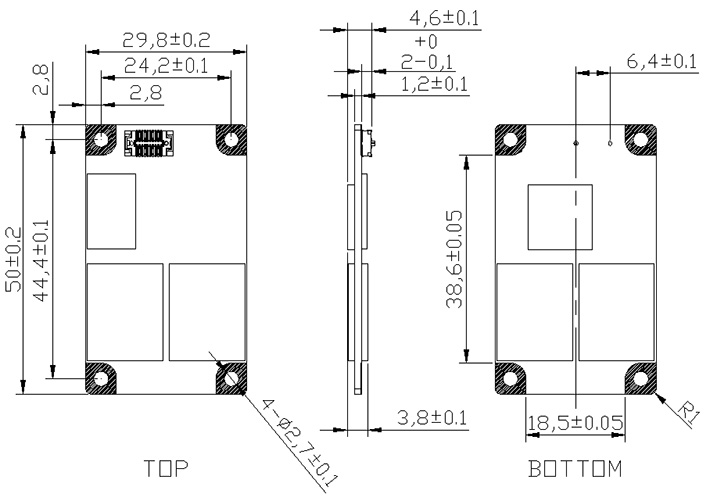

2mm thickness dimension(optional)

订购信息:

Series Name Model No. Flash Type Capacity Operating Temperature
S100 VGRS100MMA020128-WQ MLC 128GB -40℃~85℃
VGRS100MMA020256-WQ MLC 256GB -40℃~85℃
VGRS100MMA020512-WQ MLC 512GB -40℃~85℃
VGRS100MMA021024-WQ MLC 1TB -40℃~85℃
VGRS100MMA022048-WQ MLC 2TB -40℃~85℃
VGRS100MMA020128-BQ MLC 128GB -55℃~85℃
VGRS100MMA020256-BQ MLC 256GB -55℃~85℃
VGRS100MMA020512-BQ MLC 512GB -55℃~85℃
VGRS100MMA021024-BQ MLC 1TB -55℃~85℃
RSL51 VGRS501TMA020120-I TLC 120GB -20℃~70℃
VGRS501TMA020240-I TLC 240GB -20℃~70℃
VGRS501TMA020480-I TLC 480GB -20℃~70℃
VGRS501TMA020960-I TLC 960GB -20℃~70℃
Remarks: 1.Quick erase functions optional: Quick Erase with final code Q
